Textos en un Canvas

Ya hemos visto que podemos crear un texto con

lienzo.create_texto(x,y, texto)

las coordenadas son, por defecto, las del centro del area imaginario ocupada por el texto. Por ejemplo:

Texto.py
 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
import tkinter as tk

ventana = tk.Tk()
lienzo= tk.Canvas(ventana, width=300, height=200)
lienzo.pack()

x, y = 50, 50

lienzo.create_text(x,y, text="Hola")
lienzo.create_rectangle(x-30,y-30,x+30,y+30)

ventana.mainloop()

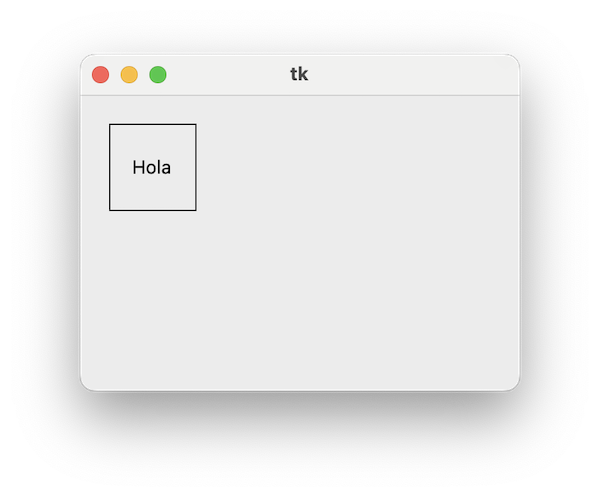

Lo que muestra:

...de forma que, las coordenadas indicadas, vendrían a estar en el punto central del recuadro.

Podemos establecer otro anclaje mediante el parámetro anchor. Por defecto es:

lienzo.create_text(50,50, text="Hola", anchor = None )

Para que las coordenadas sean

  • Centro del margen superior del texto: anchor="n"
  • Centro del margen inferior del texto: anchor="s"
  • Centro del margen derecho del texto: anchor="e"
  • Centro del margen izquierdo del texto: anchor="w"

Los valores son las iniciales de north, south, east y west. Es la forma en que tkinter establece los anclajes. Podemos combinar valores:

  • nw - esquina superior izquierda
  • ne, sw, se - resto de esquinas

Por ejemplo:

Anclajes.py
 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
import tkinter as tk

ventana = tk.Tk()
lienzo= tk.Canvas(ventana, width=600, height=300)
lienzo.pack()

x = 100
y = 50

for anclaje in ["n", "s", "e", "w"]:
    lienzo.create_rectangle(x-1,y-1,x+1,y+1, fill="red")
    lienzo.create_text(x,y, text="Anchor "+anclaje, anchor=anclaje)
    x += 100

x = 100
y = 150

for anclaje in ["ne", "se", "nw", "sw"]:
    lienzo.create_rectangle(x-1,y-1,x+1,y+1, fill="red")
    lienzo.create_text(x,y, text="Anchor "+anclaje, anchor=anclaje)
    x += 100

ventana.mainloop()

Lo que muestra las coordenadas como un punto rojo:

Po0r ejemplo, si queremos que las coordenadas se refieran a la esquina superior izquierda del area ocupada por el texto, tenemos que especificar anchor="nw"

Tipo de letra

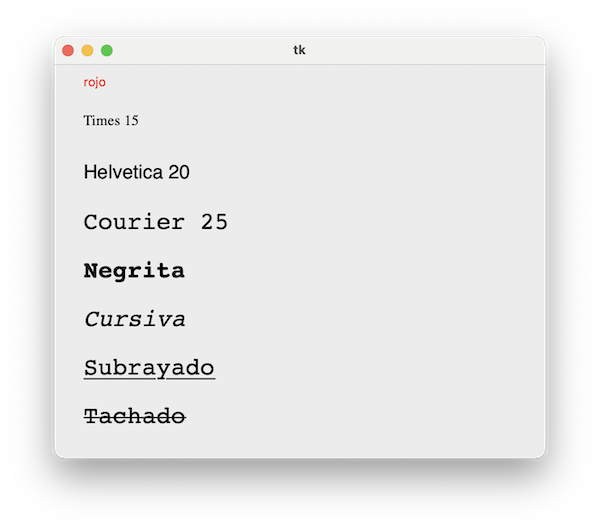

El argumento font es una tupla con tipo de letra, tamaño y modificadores

Fuentes.py
 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
import tkinter as tk

ventana = tk.Tk()
lienzo= tk.Canvas(ventana, width=500, height=400)
lienzo.pack()

lienzo.create_text(30,10,  text="rojo",         anchor="nw", fill='red')

lienzo.create_text(30,50,  text="Times 15",     anchor="nw", font=("Times",15))
lienzo.create_text(30,100, text="Helvetica 20", anchor="nw", font=("Helvetica",20))
lienzo.create_text(30,150, text="Courier 25",   anchor="nw", font=("Courier",25))

lienzo.create_text(30,200, text="Negrita",      anchor="nw", font=("Courier",25,'bold'))
lienzo.create_text(30,250, text="Cursiva",      anchor="nw", font=("Courier",25,'italic'))
lienzo.create_text(30,300, text="Subrayado",    anchor="nw", font=("Courier",25,'underline'))
lienzo.create_text(30,350, text="Tachado",      anchor="nw", font=("Courier",25,'overstrike'))

ventana.mainloop()
